| WILLMAX HSC SERIES |
| HIGH SPEED DOUBLE COLUMN MACHINE |
| The gantry type of high speed machining center |
| Water/oil-proof machine cover |
| Easy loading of heavy work piece from the top |
| Easy operations – optimized ergonomics |
| Reduced vibrations at high-speed |
| Sturdy stability |
| High rigidity |
| Optimal design of working area for HSC |
| Automatic measurement correction – dedicated sheet metal protection |
|
|
|
 |
WM-6
 |
| Controller |
MITSUBISHI M70 / M720 / M730 |
SIEMENTS 810D / 840D; FANUC SERIES |
| Travel ( X / Y / Z ) |
500 / 600 / 360 mm |
| Spindle Nose To Table |
90 / 450 mm |
| Table Dimension |
500 / 600 mm |
| T - Slots |
14 x 6 x 100 mm |
| Max. Loading Weight |
500 kg |
| Spindle Motor |
5 / 8.5 / 13.7 / 19 KW |
| Spindle Speed |
3,000 - 40,000 rpm |
| Spindle Taper |
ISO 25 / ISO 30 |
| HSK 32E / 40E / 50E |
| ATC No. of Tool |
20 |
| Machine Size ( L / W / H ) |
2600 / 2600 / 2600 mm |
| Weight |
5000 kg |
| Power Required |
18 KVA / 25 KVA |
| Air Pressure Required |
6kgf/cm |
|
| * |
Notes: Distance, spindle nose to table, changed by different spindle choosen.
Specifications are subject to chang without prior notice. |

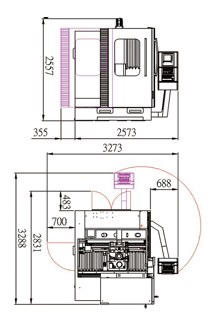

WM-8
 |
| Controller |
MITSUBISHI M70 / M720 / M730 |
SIEMENTS 810D / 840D; FANUC SERIES |
| Travel ( X / Y / Z ) |
700 / 800 / 400 mm |
| Spindle Nose To Table |
168 / 568 mm |
| Table Dimension |
700 / 800 mm |
| T - Slots |
14 x 7 x 100 mm |
| Max. Loading Weight |
750 kg |
| Spindle Motor |
5 / 8.5 / 13.7 / 19 KW |
| Spindle Speed |
3,000 - 40,000 rpm |
| Spindle Taper |
ISO 25 / ISO 30 |
| HSK 32E / 40E / 50E |
| ATC No. of Tool |
20 |
| Machine Size ( L / W / H ) |
2800 / 2800 / 2600 mm |
| Weight |
6500 kg |
| Power Required |
18 KVA / 25 KVA |
| Air Pressure Required |
6kgf/cm |
|
| * |
Notes: Distance, spindle nose to table, changed by different spindle choosen.
Specifications are subject to chang without prior notice. |

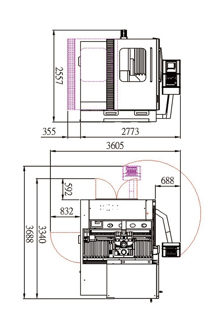

WM-10
 |
| Controller |
MITSUBISHI M70 / M720 / M730 |
SIEMENTS 810D / 840D; FANUC SERIES |
| Travel ( X / Y / Z ) |
700 / 1000 / 400 mm |
| Spindle Nose To Table |
166 / 566 mm |
| Table Dimension |
700 / 1100 mm |
| T - Slots |
14 x 7 x 100 mm |
| Max. Loading Weight |
750 kg |
| Spindle Motor |
19 / 26 KW |
| Spindle Speed |
0 - 24,000 rpm |
| Spindle Taper |
|
| HSK 50E / HSK 63A |
| ATC No. of Tool |
20 |
| Machine Size ( L / W / H ) |
3200 / 2800 / 2600 mm |
| Weight |
7500 kg |
| Power Required |
25 KVA / 35 KVA |
| Air Pressure Required |
6kgf/cm |
|
| * |
Notes: Distance, spindle nose to table, changed by different spindle choosen.
Specifications are subject to chang without prior notice. |
Standard Accessories
| Spindle Cooling System |
| Auto Lubrication System |
| Electrical Cabinet System |
| Working area cooling System |
| Enclosed Splashguard |
| Auto Tool Length Measurement |
| Lighting System |
| Adjusting Tools |
Optional Accessories
| Spindle With air-oil Lubrication System |
| Laser Tool Measurement |
| Cutting oil mist Device |
| Mist Collecting Device |
| Work-piece Measurement |
| Oil / Water Separator |
| Tool Holder & Chunck |
| Voltage Regulator |
| Transformer |
| Water Gun |
| Chip Conveyor |
|
|
|
