WILLMAX HSC SERIES

HIGH SPEED DOUBLE COLUMN MACHINE

The gantry type of high speed machining center

	Water/oil-proof machine cover
	Easy loading of heavy work piece from the top
	Easy operations – optimized ergonomics
	Reduced vibrations at high-speed
	Sturdy stability
	High rigidity
	Optimal design of working area for HSC
	Automatic measurement correction – dedicated sheet metal protection

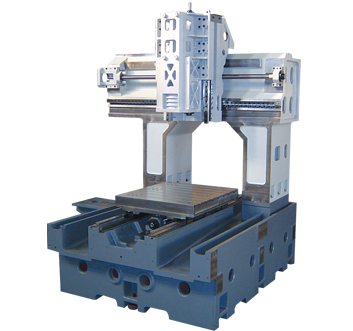

Designed with superb structural analysis to ensure sturdy stability and high rigidity
1.	Cast iron has been tempered and stress-relieved to ensure excellent life-time cutting stability and accuracy.
2.	High quality components such as ball screws, linear guides are used to ensure mechanical precision.
3.	Optimized design of gantry structure provides sturdy stability during high-speed cutting operation.
4.	Weight-optimized X-Y cross slides to ensure high sensitivity mechanical movement.

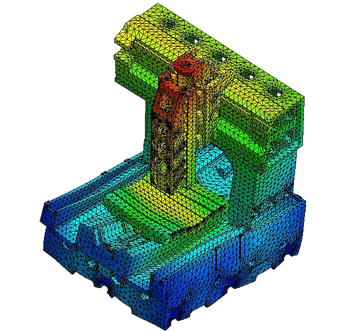

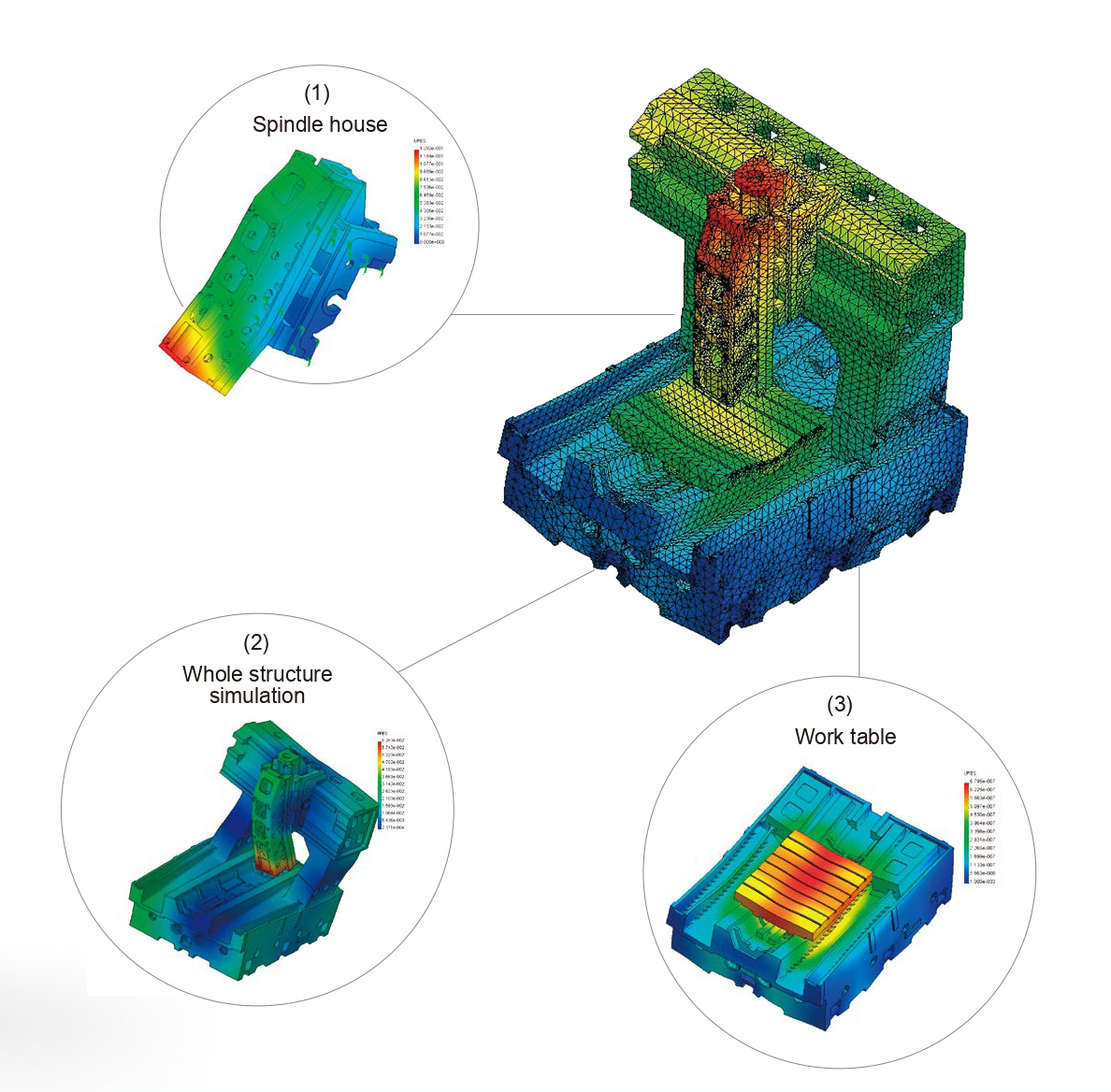

Casting structure design analysis
Based on the wealth of experience in design, and with the aid of special-purpose design software, the machine structure has been constantly modified in the castings (eg. machine base, gantry part, work table, spindle house). Thus, the highest quality in the processing of the work piece is always ensured.
